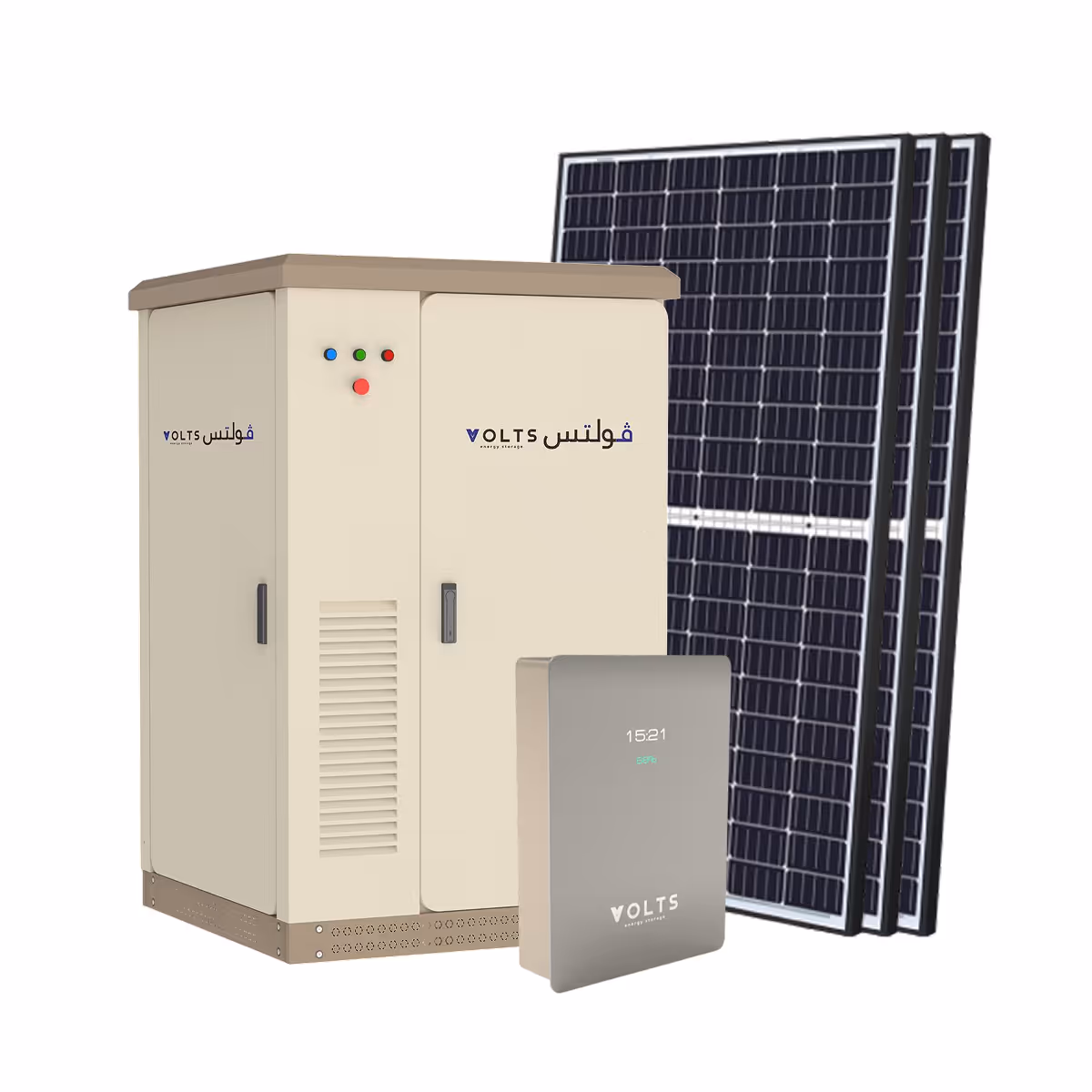

VOLTS PowerMax

Energy Storage System for villas from 50kW power and 71 kWh capacity

ORDER VOLTS

VOLTS max Features

VOLTS Power Max system has a large capacity, providing homeowners full autonomy and powerful energy backup. The system also increases a facility’s input power, which is especially useful for charging EVs. It lets you maximize the potential of green energy.

Uninterrupted Power Supply

71 kWh built-in capacity – Powers your home seamlessly during grid outages
50 kW inverter – Handles full off-grid demand for large households

Protects the house

and all electrical appliances from voltage surges and frequency jump

Makes the house autonomous

Solar-ready – Expand with panels for renewable charging
Full off-grid capability – Self-sufficient operation when needed

Increases the dedicated capacity

Connect more electrical appliances

Smart & Tailored Integration

Mobile app control – Monitor and manage remotely
Custom setup service – Seamless integration into your electrical system

ULTIMATE COMFORT
AND ECOLOGY SUPPORT

QUITE WORK
EASY TO USE
ADAPTIVE DESIGN
ZERO ADDITIONAL COSTS

VOLTS MAX - BASIC

VOLTS MAX
1 pc
SOLAR PANELS
15 kw
25 pcs
73 sqm
GENERATION PER 1 MONTH
3 800 kWh

VOLTS MAX - OPTIMA

VOLTS MAX
1 pc
SOLAR PANELS
27 kw
45 pcs
130 sqm
GENERATION PER 1 MONTH
5 700 kWh

VOLTS MAX - MAXIMA

VOLTS MAX
1 pc
SOLAR PANELS
39 kw
65 pcs
190 sqm
GENERATION PER 1 MONTH
8 550  kWh

Energy consumption statistics

Smart management

Reservation time forecast

Online monitoring

Unique smart control system

The system includes an integrated smart meter and sensors, allowing you to analyze and manage your entire energy setup through a mobile application.
Access your smart home energy system with our mobile solution. Manage it effortlessly, receivedetailed statistics, and system analysis from anywhere, anytime.

VOLTS MAX
TECHNICAL CHARACHTERISTICS

DOWNLOAD THE CATALOG
RATED POWER 50 KW
MAXIMUM POWER 55 KW
STORAGE CAPACITY 71 KWH
OUTPUT VOLTAGE AC 230/400 V
OUTPUT VOLTAGE WAVEFORM: PURE SINE WAVE
VOLTAGE OF CONNECTED PANEL 160-800 V
MEDIUM PROTECTION IP 54
OPERATING TEMPERATURE FROM -20°С TO +50°С
MAX SOLAR POWER PANELS 65 KW
BATTERY TYPE LiFePO4
DIMENSIONS 1066x1174x1561 MM
WEIGHT 1000 KG

MOBILE APP
TO CONTROL IN ONE CLICK

SAVINGS CALCULATION
STATISTICS TRACKING
ENERGY MANAGEMENT
CHECK THE STATUS

VOLTS LIGHT

ENERGY STORAGE SYSTEMFOR HOMES up to 50 kWh

VOLTS UTILITY SCALE

Technical solutionsfor accumulation and monitoring from 100kWh
